Cold Drawn Aluminium Cheese Tubes
| Sr. No | Dimensions | Weight | ||
|---|---|---|---|---|
| ID | Thickness | Length | (+/- 5 gms) | |
| 1 | 35 | 1.5 | 218 / 230 | 101 / 107 |
| 2 | 35 | 2 | 218 / 230 | 137 / 145 |
| 3 | 35 | 2.5 | 218 / 230 | 173 / 183 |
| 4 | 37 | 1.5 | 218 / 230 | 107 / 113 |
| 5 | 32 | 1.5 | 218 / 230 | 93 / 98 |
*Tube Alloy: 6082
Extruded Aluminium Cheese Tubes
| Sr. No | Dimensions | Weight | ||
|---|---|---|---|---|
| ID | Thickness | Length | (+/- 5 gms) | |
| 1 | 40 | 2.5 | 218 / 230 | 197 / 208 |
| 2 | 35 | 2 | 218 / 230 | 137 / 145 |
| 3 | 35 | 2.5 | 218 / 230 | 173 / 183 |
*Tube Alloy: 6082
Tensile Strength for all the above sizes are 295+ MPa.
Any other sizes required by the customer will be available on request.
Advantages of Cold Drawn tubes over Extruded tubes
Drawn Tube Dimension Tolerances are precise
compared to Extruded Tubes
Better Straightness
Better Ovality
Better Mechanical Properties
Because of the precise dimensions of the
Tubes, the Doff quality will be better which will ultimately create the better weaving quality without any
yarn breakage
We Have Specially Developed some new products
Aluminium Cheese tubes with Adapter on both
the sides
Aluminium Cheese Tubes with 35 mm ID - Tubes
with Grooving in a Two different Models A and B. Drawings to be attached
We Have Developed Lightest ever
Aluminium Cheese Tubes of 100 Grams
Product Features
High Tensile
Light Weight
Tubes with Precisely Controlled Dimensions
Tubes with length as per customer
requirement
Perfect Roundness and Straightness

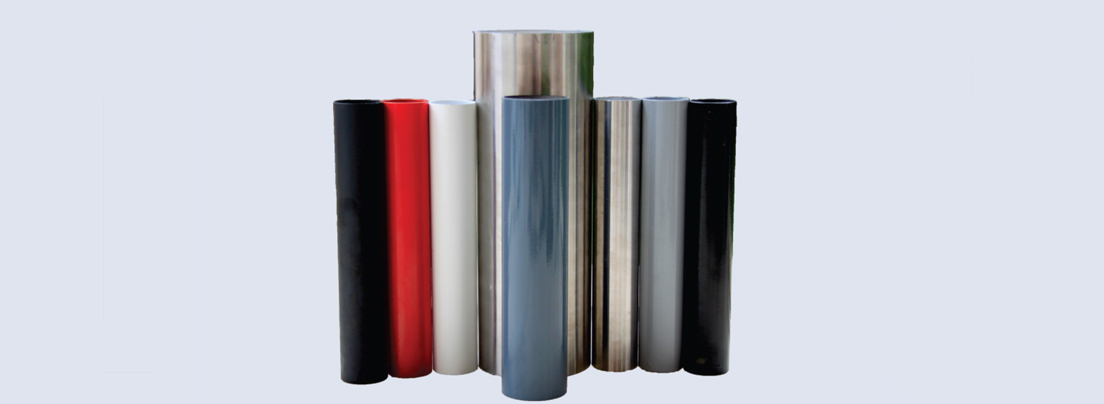

Plain and with Anodized Tubes as per
customer requirement
Precise Chamfering with the 90 Degree Right
angle cutting
Advantages
Lowest cost per cycle
Better fitment due to Precise Dimensions
Save Electricity and Maintenance cost
because of the light weight of the Tubes
Productivity increase because of the Light
weight of the Tubes
Better weaving quality due to perfect tube
Roundness
The Salvage value of the tubes shall be
more than 50% of the initial investment cost
