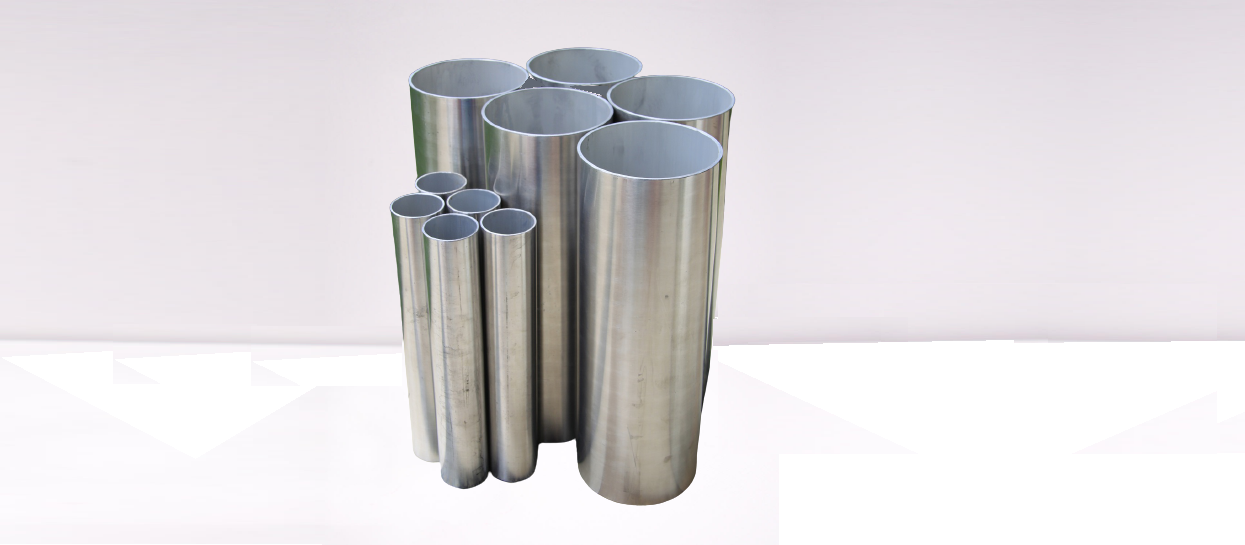

Aluminium Jumbo Tubes

Aluminium Jumbo Tubes

Sr. No Dimensions Weight
ID Thickness Length (+/- 5 gms)
1 50.8 3.6 270 / 275 / 280 / 330 450 / 458 / 466 / 550
2 62 2 270 / 275 / 280 / 330 294 / 299 / 305 / 359
3 76 2 270 / 275 / 280 / 330 358 / 365 / 371 / 438
4 76 2.5 270 / 275 / 280 / 330 450 / 459 / 467 / 550
5 80 2.5 270 / 275 / 280 / 330 473 / 482 / 491 / 579
6 80 3 270 / 275 / 280 / 330 571 / 582 / 593 / 698
7 82 2.5 270 / 275 / 280 / 330 485 / 494 / 503 / 593
8 82 3 270 / 275 / 280 / 330 585 / 596 / 607 / 715
9 90 2.5 270 / 275 / 280 / 330 531 / 541 / 550 / 649
10 90 3 270 / 275 / 280 / 330 640 / 652 / 664 / 783
11 90 3.5 270 / 275 / 280 / 330 751 / 765 / 779 / 918
12 90 4 270 / 275 / 280 / 330 863 / 879 / 895 / 1055
13 103 2.5 270 / 275 / 280 / 330 605 / 617 / 628 / 740

*Tube Alloy: 6082

Aluminium Multifilament Tubes

Sr. No Dimensions Weight
ID Thickness Length (+/- 5 gms)
1 110 2.5 270 / 275 / 280 / 330 645 / 657 / 669 / 789
2 110 3 270 / 275 / 280 / 330 778 / 792 / 807 / 951
3 110 3.5 270 / 275 / 280 / 330 912 / 929 / 945 / 1114

*Tube Alloy: 6082
Tensile Strength for all the above sizes are 295+ MPa.


Product Features


High Tensile
Light Weight
Tubes with Precisely Controlled Dimensions
Tubes with length as per customer requirement
Perfect Roundness and Straightness
Plain and with Anodized Tubes as per customer requirement
Precise Chamfering with the 90 Degree Right angle cutting


Advantages

Paper tube can be replaced by Aluminium Jumbo Tubes
Lowest cost per cycle
Better fitment due to Precise Dimensions
Save Electricity and Maintenance cost because of the light weight of the Tubes
Productivity increase because of the Light weight of the Tubes
Better weaving quality due to perfect tube Roundness
The Salvage value of the tubes shall be more than 50% of the initial investment cost

Product Applications

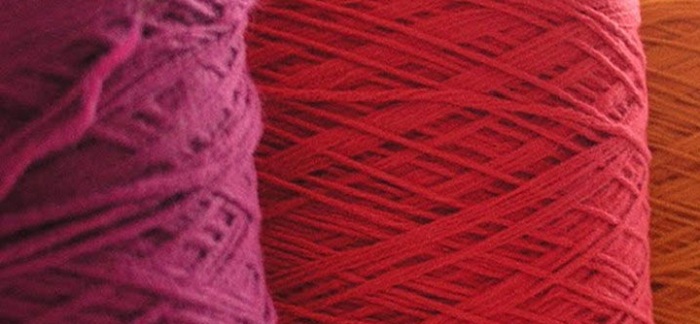

Winding Multifilament Yarn

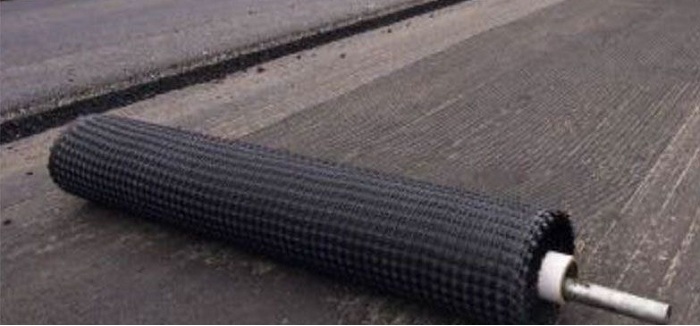

Geotextile

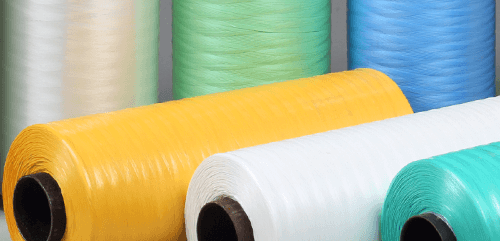

PP / HDPE Flat Tape Yarn

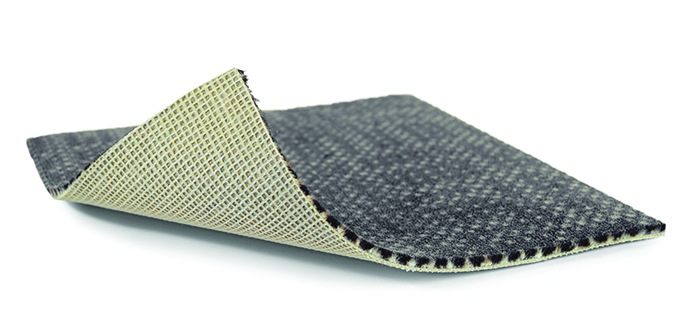

Carpet Backing Fabric / Cloth
